GL41H-16Q

Overview of GL41H-16Q Flange Filter:The Y-type filter is an indispensable device in the pipeline system for transporting media. 、It is usually installed at the inlet end of hydraulic control valves or

Online consultation Service Hotline
+8617792424606

Product Introduction / PRODUCT INTRODUCTION

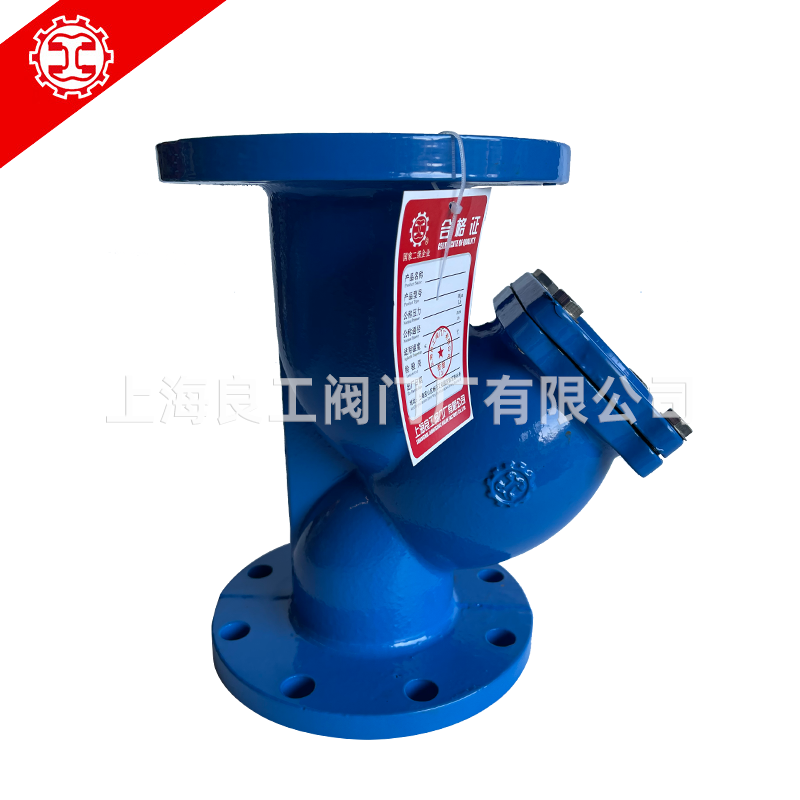

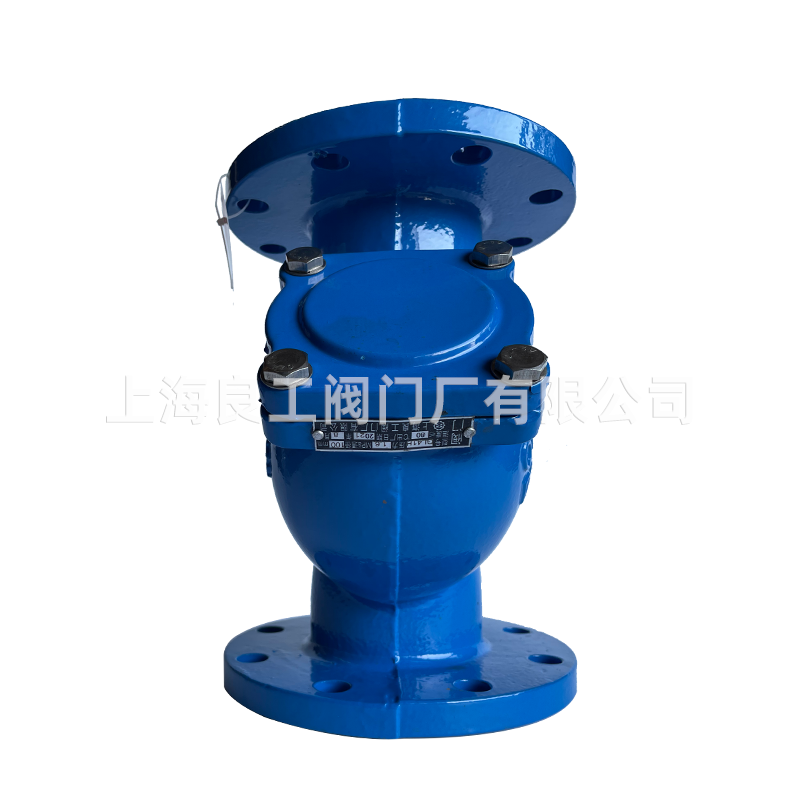

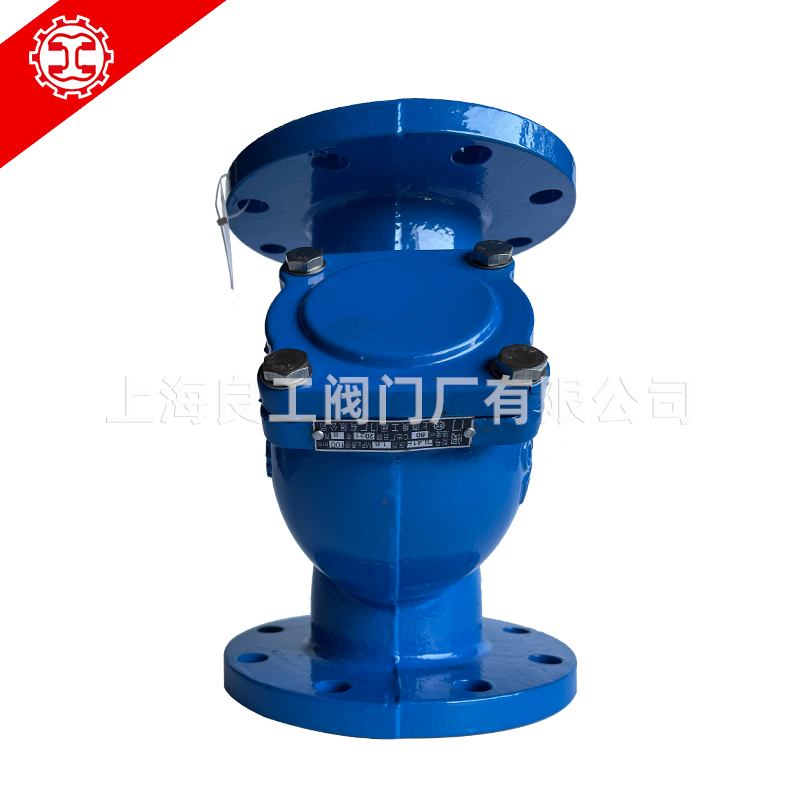

Overview of GL41H-16Q Flange Filter:

The Y-type filter is an indispensable device in the pipeline system for transporting media.

、It is usually installed at the inlet end of hydraulic control valves or other equipment to remove particulate impurities

from the medium and protect the normal operation of the valve equipment. The Y-type filter screen adopts a double-layer

stainless steel mesh structure, which is sturdy and durable. It features an advanced structure, low flow resistance and

convenient sewage discharge. It can be used for various media such as water, steam, oil products, nitric acid, urea and

oxidizing media. The mesh size of the filter screen should be set according to the user's needs. Generally, the mesh size

of the water passage screen is 18-30, that of the air passage screen is 40-100, and that of the oil passage screen is 100-480.

The Y-type filter can also be combined with an expansion joint to form a Y-type telescopic filter with adjustable installation length.
