Advantages:
1. Low flow resistance. The medium channel inside the valve body is straight through, and the medium flows in a straight line with low flow resistance.
2. It is relatively easy to open and close. This is in comparison with the stop valve, because whether it is open or closed, the movement direction of the gate plate is always perpendicular to the flow direction of the medium.
3. It has a large height and a long opening and closing time. The opening and closing stroke of the gate plate is
relatively large, and the lowering is carried out through a screw.
4. Water hammer is not likely to occur. The reason is that the closure time is long.
5. The medium can flow in any direction on both sides, making it easy to install. The two sides of the gate valve channel are symmetrical.
6. The structural length (the distance between the two connecting end faces of the shell) is relatively small.
7. It has a simple shape, short structural length, good manufacturing processability and wide application range.
8. Compact structure, good valve rigidity, smooth channel, low flow resistance, sealing surface made of stainless steel and hard
alloy, long service life, PTFE packing is used. The sealing is reliable. The operation is light and flexible.

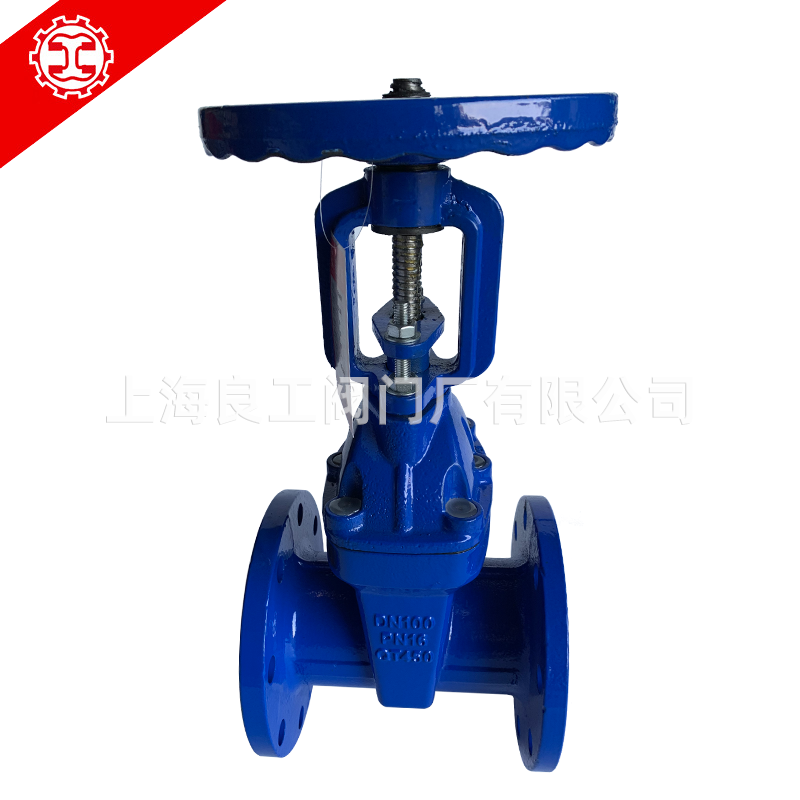

Z1x -16, Z1X -16Q, elastic seat seal gatevalve, rising stem soft seal gatevalve, Gate EVALVE, cast iron gatevalve, ductile iron
gatevalve, soft seal gatevalve, rising stem gatevalve, national standard gatevalve, flanged gatevalve, low-pressure gatevalve, water, oil, gas, etc
