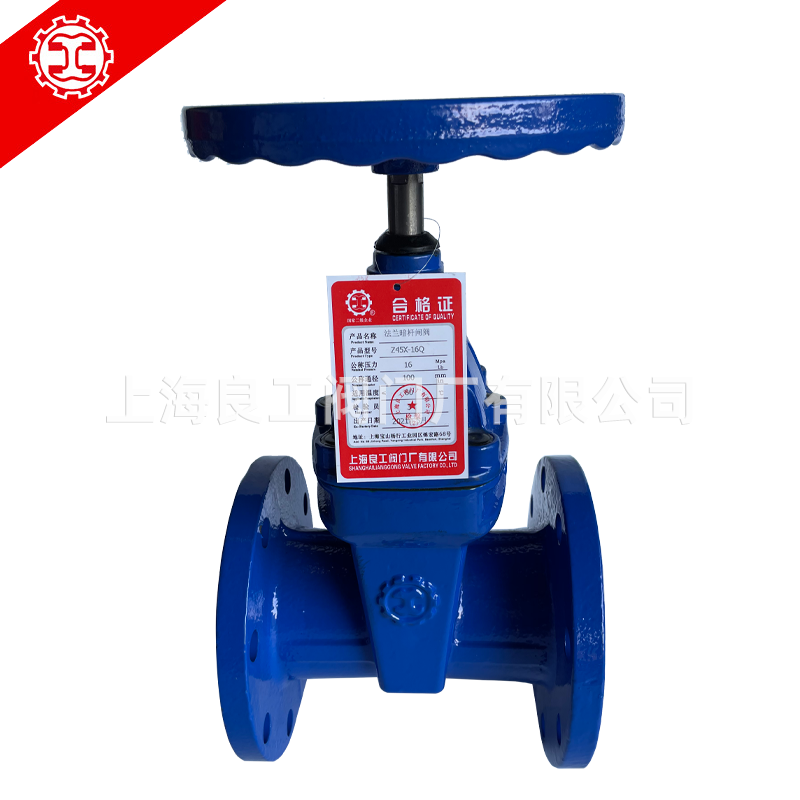

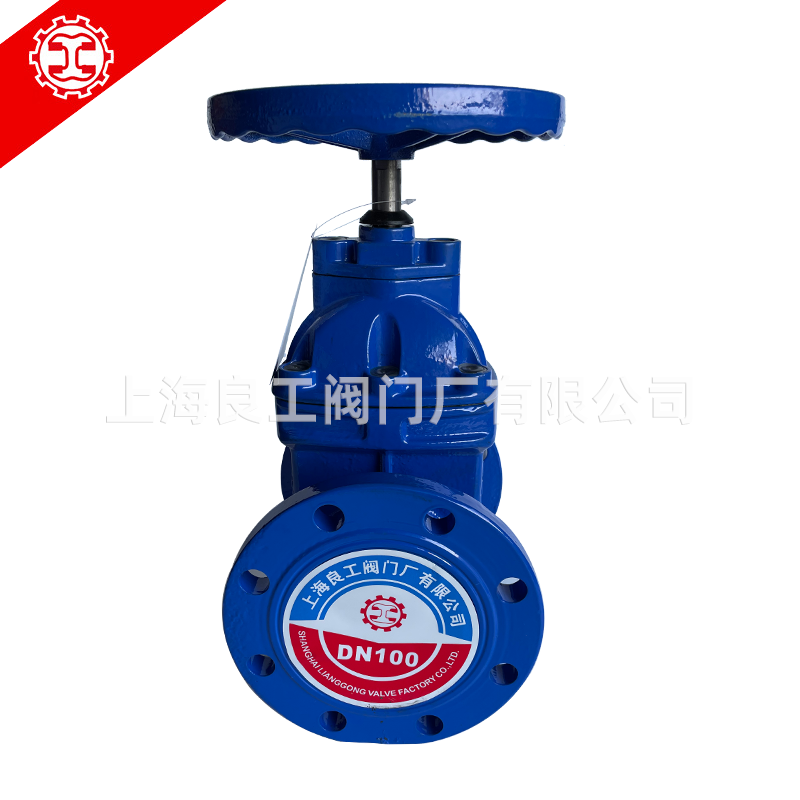

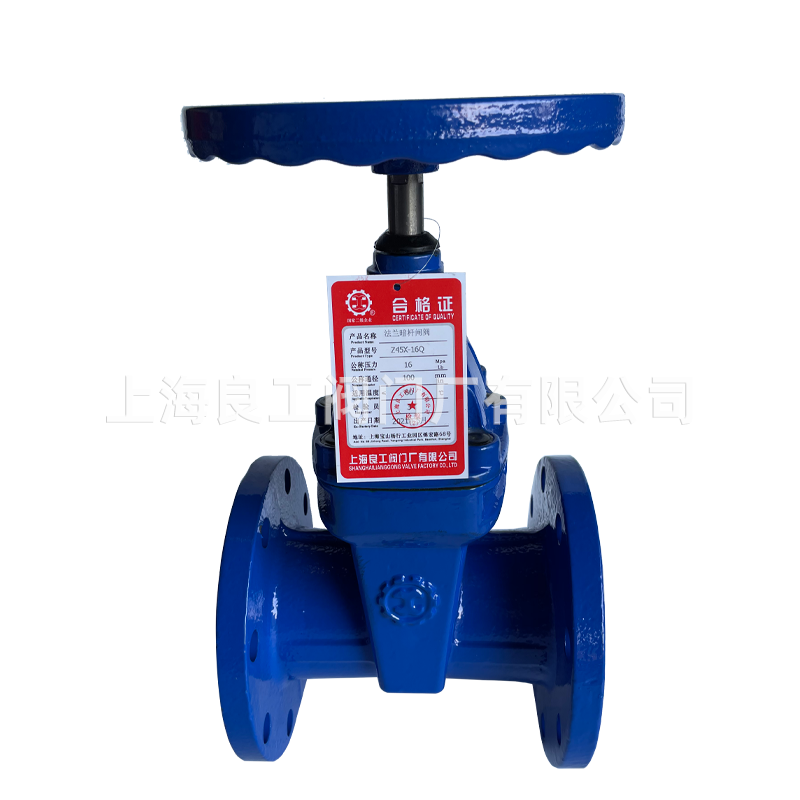

Soft-sealed gate valve Z45X-16Q
Soft-sealed gate valve Z45X-16Q-DN300. Soft-sealed gate valve Z45X-16Q-DN400. Soft-sealed gate
valve Z45X-16Q-DN500. Soft-sealed gate valve Z45X-16Q-DN600
Detailed information
Product Overview of Z45X-10Q
In addition to the advantages of the elastic seat sealed gate valve, the Z45 concealed stem elastic seat sealed
gate valve achieves a good sealing effect by using the overall rubber coating of the gate to generate deformation
compensation. It overcomes the problems of poor sealing, leakage and rusting of general gate valves, and more
effectively saves installation space. It can be widely used as a regulating and shut-off device on fluid pipelines
in water supply, sewage, construction, petroleum, chemical, food, medicine, light textile, power, shipping, metallurgy, energy systems, etc.
Main technical parameters of Z45X-10Q
Nominal pressure: PN10 (1.0MPa) to PN25 (2.5MPa)
Nominal diameter: DN50mm-DN400mm (For DN400mm-DN1200mm, it is recommended to choose bevel gear gate valves or electric gate valves)
Operating temperature: 0-80℃
Applicable media: water, oil, gas, etc
Flange standards: GB/Tl7241.6, GB9113
Test standard: GBl3927 APl598
