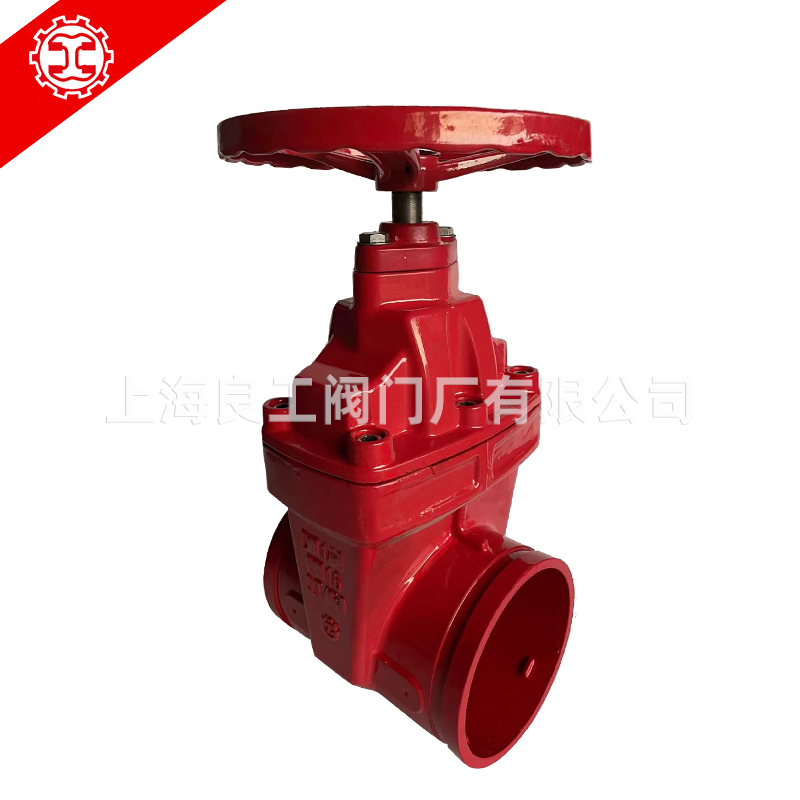

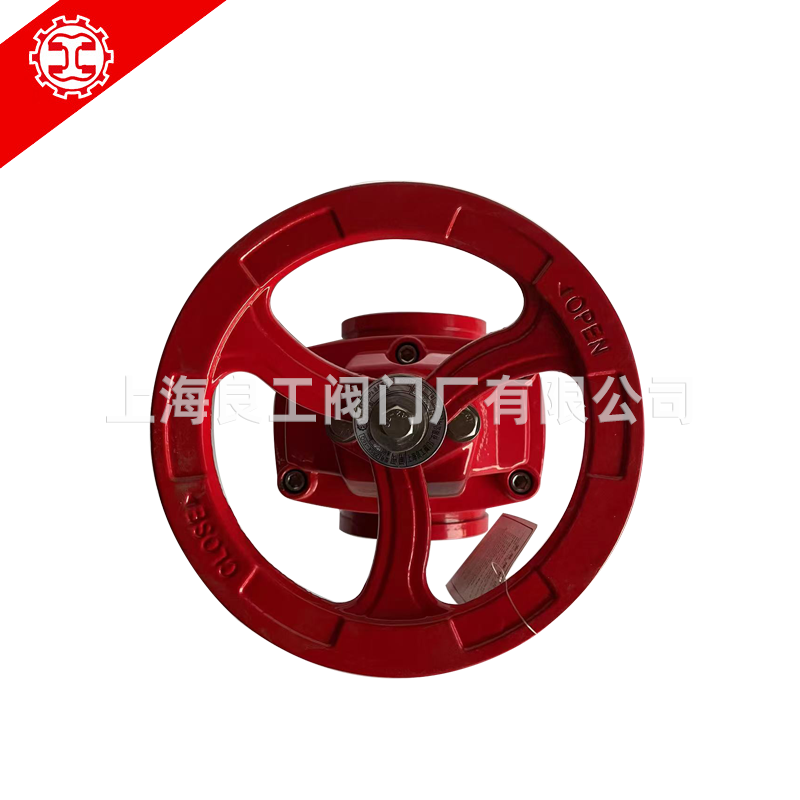

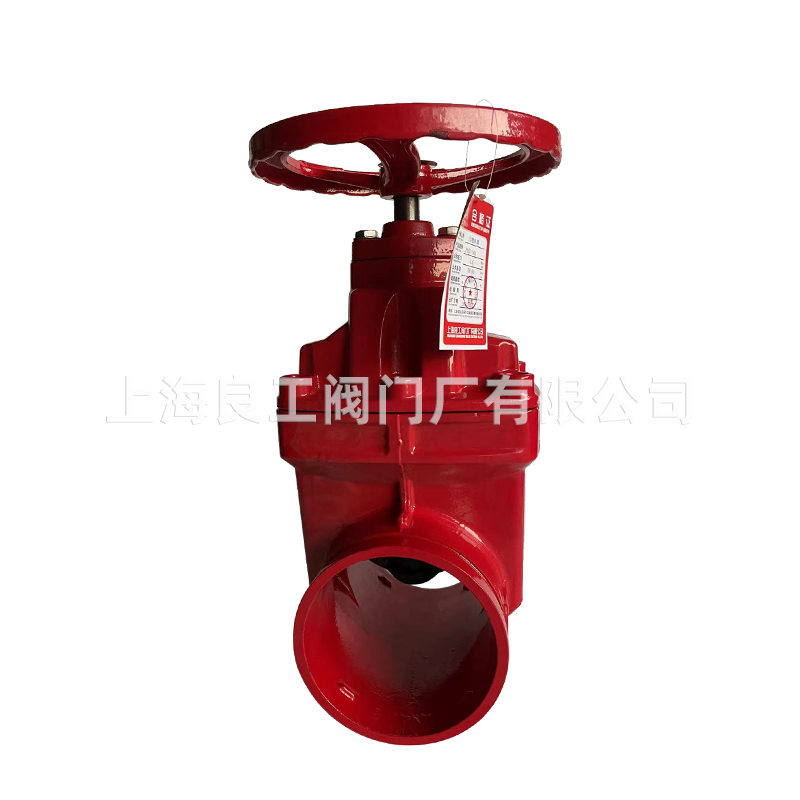

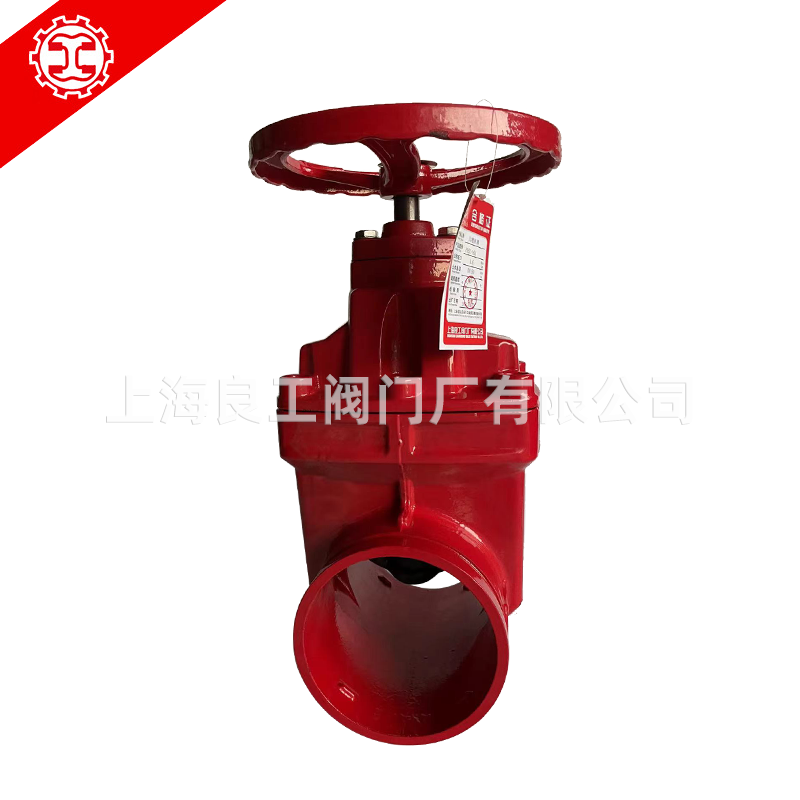

Product application of Z85X-16Q grooved gate valve
The grooved type concealed stem elastic seat sealed gate valve is a type of grooved gate valve. It has the advantages
of light opening and closing, reliable sealing, good elastic memory and long service life. The grooved gate valve is
lightweight. Its body is made of high-grade ductile iron, which is about 20% to 30% lighter than that of traditional gate
valves. It is easy to install and maintain. It is used as a regulating and shut-off device in fluid pipelines of water supply,
sewage, construction, petroleum, chemical, food, medicine, light textile, power, shipping, metallurgy, energy systems, etc.
Product features of Z85X-16Q grooved gate valve
1. Integral rubber coating: The gate adopts integral rubber coating, which features excellent covering performance and
precise geometric dimensions, ensuring reliable sealing and a long service life.
2. Light weight: The valve body is made of ductile iron, which is light in weight and easy to install.
3. Flat-bottomed valve seat: The bottom adopts the same flat-bottomed valve seat design as the water pipe,
which does not cause debris accumulation and ensures a good seal
4. The inner cavity is coated with epoxy resin to prevent corrosion and rust. It can not only be drunk raw but also be used in sewage systems.
5. Three "0" seals: The valve stem adopts three O-ring seals, which have low friction resistance, are easy to open and close, and do not leak water.
Performance parameters of Z85X-16Q grooved gate valve
Nominal pressure: 1.0-1.6MPa
Shell strength test pressure: 1.5-2.4-3.75
Sealing performance test pressure: 1.1-1.76-2.75
Product materials: cast iron, ductile iron, carbon steel, stainless steel
Applicable medium: Water.
